iTherm®

Thermoplastic Pavement Markings

Traffic Marking Paint, Thermoplastic Road Pavement Markings, iTherm®

ITS Inc. manufactures high quality Thermoplastic Pavement/Road/Traffic Markings that deliver better visibility and high performance ensuring safety with low maintenance.

Thermoplastic Pavement/Road/Traffic Markings are the preferred choice of road authorities due to their long term performance, cost benefits and good retroreflectivity.

Under the iTherm® range we offer both Alkyd and Hydrocarbon based Thermoplastics for various application methodologies.

Alkyd Thermoplastics

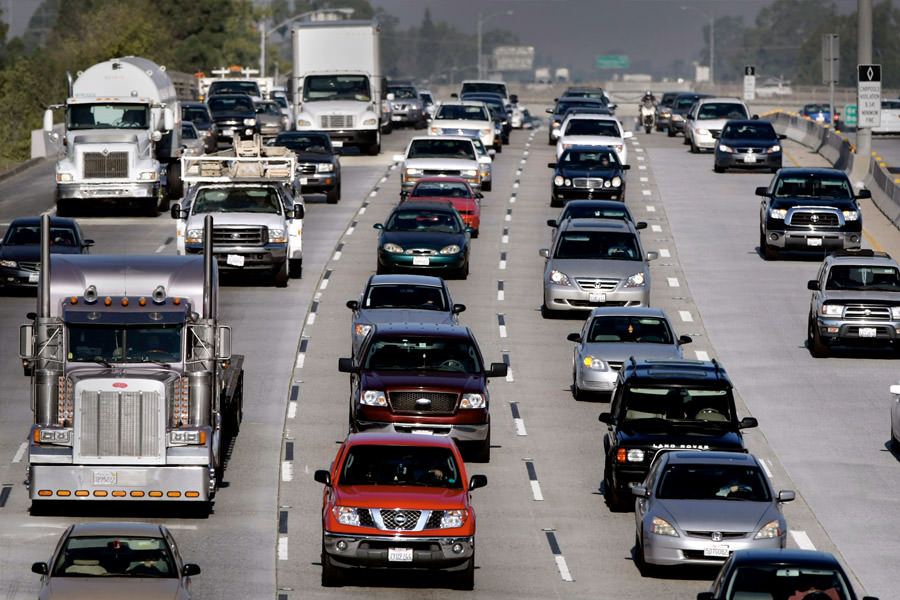

ITS Inc. recommends Alkyd Thermoplastics for busy urban city roadways
Alkyd Thermoplastics
Click To Enlarge

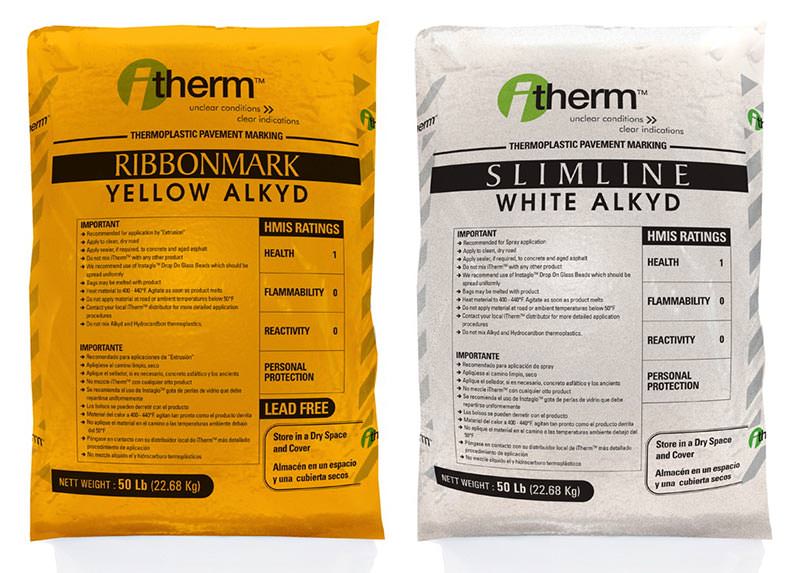

iTherm® Alkyd is formulated using high quality maleic modified resin ester derivatives which are impervious to the effects of petroleum products like oil, grease, diesel, etc. on the road surface. This unique property makes iTherm® Alkyd more durable on highly dense traffic areas such as: inner city and urban roadways. iTherm® Alkyd has excellent glass beads retention, good heat stability, and is suitable for all kinds of applications on asphalt and Portland Cement Concrete (PCC) roads. iTherm® Alkyd is available in granular powder form in 50 lb. batch inclusion bags*.

Hydrocarbon Thermoplastics

ITS Inc. recommends Hydrocarbon Thermoplastics for highways
Hydrocarbon Thermoplastics
Click To Enlarge



iTherm® Hydrocarbon is formulated using high quality C5 petroleum resins which offer good heat stability, good adhesion and ease of application. iTherm® Hydrocarbon can be used for all types of markings such as: intersections, long-line, legends, and symbols, and is suitable for all kinds of applications on asphalt and Portland Cement Concrete (PCC) roads. iTherm® Hydrocarbon is available in granular powder form in 50 lb. batch inclusion bags*.

*Batch inclusion bags are bags that can be charged directly into the preheater/premelter.

The iTherm® Range

The iTherm® range is small but very versatile and has been tried, tested, and proven to be ideal for a range of applications. These include:

SOLIDMARK SLIMLINE RIBBONMARK PROFILEMARK
RECOMMENDATION: RECOMMENDATION: RECOMMENDATION: RECOMMENDATION:
Screed type applications

A technique that forms a line on the road surface when molten thermoplastic material is poured through a dispensing shoe under gravity with a prescribed thickness and width.		 Spray type applications

Molten thermoplastic deposited on the road surface under pressure through a nozzle.		 Extrusion type applications

Molten thermoplastic material is laid on the surface of the road by a special pump.		 Shoulder lines
FEATURES: FEATURES: FEATURES: FEATURES:
  • Heat retention capabilities
  • Better adhesion
  • Uniform thickness
  • Quick setting
  • Faster application
  • Good adhesion on overlay
  • Sharp edges
  • Ease on all surfaces
  • Higher productivity
  • Wet night visibility
  • Audible lane delineation
APPLICATION: APPLICATION: APPLICATION: APPLICATION:
  • Edge lines
  • Center lines
  • Skip lines
  • Symbols
  • Crosswalks
  • Advisory and mandatory markings on all categories of roads as a maintenance coating for touching up worn out traffic lines
  • Edge lines
  • Center lines
  • Skip lines
  • New road construction
  • Edge lines
  • Center lines
  • Skip lines
  • Transmits an audible and sensory warning when driven over

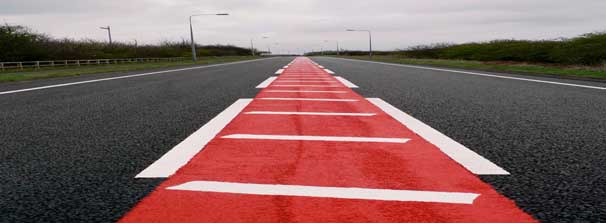

  • Improves night time visibility on wet roads due to raised ribs protruding above the water film

Thermoplastic Calculator

Types

Thickness


Distance Unit

Order Unit

Amount Needed:

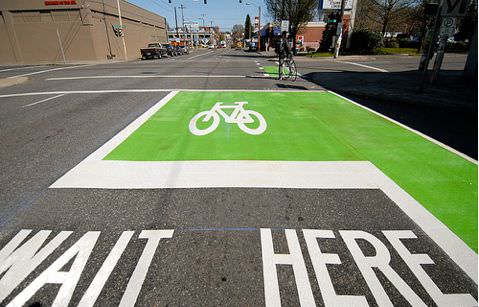

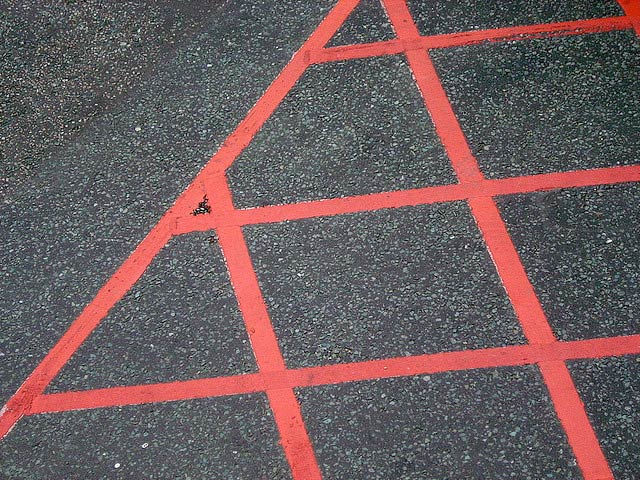

Product Photos
